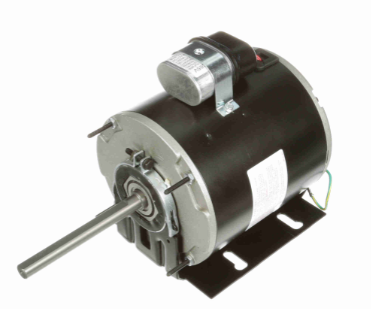

• Unit Heater Fan Motor

• 5.6" Diameter - 48 Frame

• Permanent Split Capacitor (PSC); Capacitor Required: 4 Mfd-370 Volts (Supplied with Motor)

• Thermally Protected

• Totally Enclosed Air over

• Class B Insulation, 60°C Ambient

• Ball Bearing

• 1/2" Diameter Shaft with Flat

• 5.5" Leads

• Resilient Base

                                   FLA Cat.

HP          RPM S       peeds                 Volts      Base        Rotation              @ NP

1/6         1075         3                   115        1RR             CCW                2.4

     1075         1               115       2RR          CCW/CW           2.2

1/4         1075         1               115       2RR          CCW/CW           3.3

     1075         1                   208-230     2RR          CCW/CW           1.4

1/3         1075         1               115       2RR          CCW/CW           4.9

             1075         1                   208-230     2RR          CCW/CW           2.0
