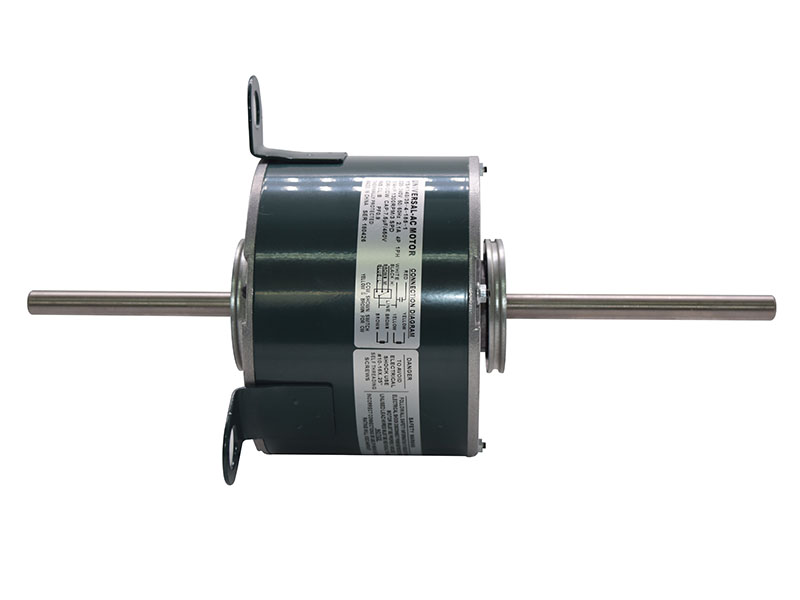

系列：140系列
款式：卷板帶安裝腳
型號：YSK140/35-4-185-1
服務熱線：13961291308
♦定制說明：一切規格按照客戶實際情況或考察后量身定制，支持非標定制。
♦庫存配送：有貨，全國送貨保障！
♦溫馨提示：本產品一經下單生產，非質量問題不支持退貨！
產品描述
Features
.High efficiency and low noise designs
.Automatic thermal overload protection
pplications
.Designed for continous air over applications,
such as room air conditioners, unit coolers,
and other air moving applications with double shaft requirements
NO | Model | Voits | Hz | HP | RPM(SPD) | ROT | CAP(MDF/VAC) | OEM Model |
1 | YSK140-150-4A3 | 208-230 | 50 | 1/5HP | 980/3 SPD | CCW-LE | 5/400 | PM410538 |
2 | YSK140-180-6A | 208-230 | 60 | 1/4HP | 1075/3 SPD | CCW-LE | 5/370 | 5KCP39FG5829ET |
3 | YSK140-185-6A | 208-230 | 60 | 1/4HP | 1100/2 SPD | CW-LE | 5/370 | 5KCP39FGK111T |
4 | YSK140/35-4-185A | 230 | 60 | 1/4HP | 1170/3 SPD | CCW-LE | 7.5/370 | KU3011 |
5 | YSK140/35-4-185 | 220/230 | 50 | 1/4HP | 1300/3 SPD | REVERSIBLE | 7.5/450V | |
6 | YSK140-185-4A5 | 230 | 50 | 1/4HP | 1360/3 SPD | REVERSIBLE | 7.5/450V | PM4104188 |
7 | YSK140-185-4A6 | 230 | 50 | 1/4HP | 1070/3 SPD | CCW-LE | 7.5/450V | PM4104125 |
8 | YSK140-185-4A7 | 230 | 50 | 1/4HP | 1100/3SPD | CCW-LE | 5/450 | PM4104167 |
9 | YSK140-185-4A17 | 115 | 60 | 1/4HP | 1625/3 SPD | CCW-LE | 5/370 | D773 |
10 | YSK140-185-4A18 | 208-230 | 60 | 1/4HP | 1625/3 SPD | CCW-LE | 5/370 | D774 |
11 | YSK140-185-4A19 | 208-230 | 60 | 1/4HP | 1625/3 SPD | CCW-LE | 5/370 | K55HXSPJ-3134 |
12 | YSK140-245-6A | 208-230 | 60 | 1/3HP | 1120/3 SPD | CCW-LE | 7.5/370 | 5KCP39HGM307AT |
13 | YSK140-245-6A2 | 208-230 | 60 | 1/3HP | 1120/3 SPD | CCW-LE | 7.5/370 | F48F43B0956 |
14 | YSK140-245-6A4 | 208-230 | 60 | 1/3HP | 1090/2 SPD | CCW-LE | 5/370 | 5KCP39FGM291TC |
15 | YSK140-245-4A20 | 115 | 60 | 1/3HP | 1625/3 SPD | CCW-LE | 5/370 | D770 |
16 | YSK140-245-4A21 | 208-230 | 60 | 1/3HP | 1625/3 SPD | CCW-LE | 5/370 | D771 |
17 | YSK140-245-4A22 | 208-230 | 60 | 1/3HP | 1075/3 SPD | CCW-LE | 5/370 | K55HXSPK-3135 |
18 | YSK140-245-4A23 | 208-230 | 60 | 1/3HP | 1625/3 SPD | CCW-LE | 7.5/370 | KA55XSGS-9930 |
19 | YSK140-375-4A15 | 115 | 60 | 1/2HP | 1625/3 SPD | CCW-LE | 7.5/370 | D777 |
20 | YSK140-375-4A16 | 208-230 | 60 | 1/2HP | 1625/3 SPD | CCW-LE | 7.5/370 | D772 |
21 | YSK140-375-6A17 | 208-230 | 60 | 1/2HP | 1075/3 SPD | CCW-LE | 7.5/370 | K55HXSPL-3136 |
22 | YSK140-550-4A10 | 208-230 | 60 | 3/4HP | 1075/3 SPD | CCW-LE | 7.5/370 | D778 |
NO | Model | Voits | Hz | HP | RPM(SPD) | ROT | CAP(MDF/VAC) | OEM Model |
1 | YSK140-120-6A | 208-230 | 60 | 1/6HP | 1095/3 SPD | CCW-LE | 5/370 | 5KCP39DGS008T |
2 | YSK140-120-6A2 | 208-230 | 60 | 1/6HP | 1000/2 SPD | CW-LE | 5/370 | 5KCPD39GM511T |
3 | YSK140-120-6A5 | 208-230 | 60 | 1/6HP | 1095/3 SPD | CCW-LE | 5/370 | 5KCP39DGM004T |
4 | YSK140-120-6A6 | 208-230 | 60 | 1/6HP | 1050/3 SPD | CCW-LE | 5/370 | F48U05B09 |
5 | YSK140-120-6A7 | 208-230 | 60 | 1/6HP | 1050/3 SPD | CW-LE | 5/370 | K55HXPKG-5158 |
6 | YSK140-120-6A18 | 208-230 | 60 | 1/6HP | 1000/2 SPD | CW-LE | 5/370 | F48SE6MA61 |
7 | YSK140-120-6A3 | 208-230 | 60 | 1/6HP | 1050/3 SPD | CW-LE | 5/370 | ACE-635-16 |
8 | YSK140-120-4A22 | 208-230 | 60 | 1/6HP | 1050/3 SPD | CCW-LE | 5/370 | F48CS6MA14 |
9 | YSK140-120-4A23 | 115 | 60 | 1/6HP | 1075/3 SPD | CCW-LE | 5/370 | D754 |
10 | YSK140/30-4-150 | 220/230 | 50 | 1/5HP | 1200/3 SPD | REVERSIBLE | 5/370 | |
11 | YSK140-150-6A | 208-230 | 60 | 1/5HP | 1115/3 SPD | CW-LE | 5/370 | 5KCP39FGM4440 |
12 | YSK140-150-6A2 | 208-230 | 60 | 1/5HP | 1075/3 SPD | CW-LE | 4/370 | 5KCP39FGM672S |
13 | YSK140-150-6A3 | 208-230 | 60 | 1/5HP | 1100/2 SPD | CW-LE | 5/370 | 5KCP39FGM639T |
14 | YSK140-150-6A4 | 208-230 | 60 | 1/5HP | 1115/3 SPD | CW-LE | 5/370 | F48U01A30 |
15 | YSK140-150-6A5 | 208-230 | 60 | 1/5HP | 1050/3 SPD | CW-LE | 5/370 | 5KCP39HGS635S |
16 | YSK140-150-6A6 | 208-230 | 60 | 1/5HP | 1100/3 SPD | CCW-LE | 5/370 | K55HXLEK-5966 |
17 | YSK140-150-6A7 | 208-230 | 60 | 1/5HP | 1100/3 SPD | CCW-LE | 5/370 | ACE-000-33C |
18 | YSK140-150-6A10 | 208-230 | 60 | 1/5HP | 1050/3 SPD | CW-LE | 5/370 | F48533B38Y |
19 | YSK140-150-6A14 | 208-230 | 60 | 1/5HP | 1050/2 SPD | REVERSIBLE | 4/370 | K55ZZEHN-4921 |
20 | YSK140-150-4A21 | 208-230 | 60 | 1/5HP | 1625/3 SPD | CCW-LE | 5/370 | D775 |
21 | YSK140-150-4A22 | 115 | 60 | 1/5HP | 1625/3 SPD | CCW-LE | 5/370 | D776 |
22 | YSK140-150-4A | 208-230 | 60 | 1/5HP | 1350/2 SPD | CCW-LE | 5/370 | KA5HXNGT-9416C |
23 | YSK140-150-4A2 | 208-230 | 50 | 1/5HP | 1360/3 SPD | REVERSIBLE | 5/400 | PM410542 |
