系列：160系列

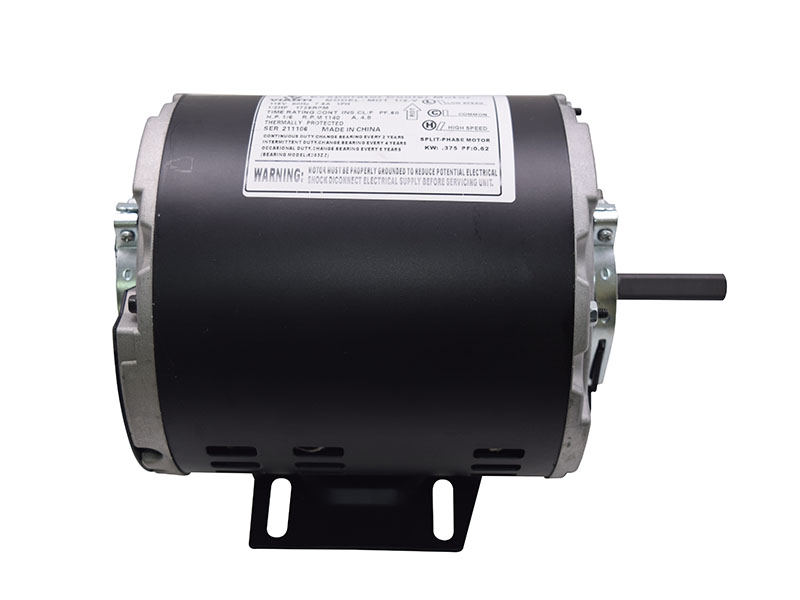

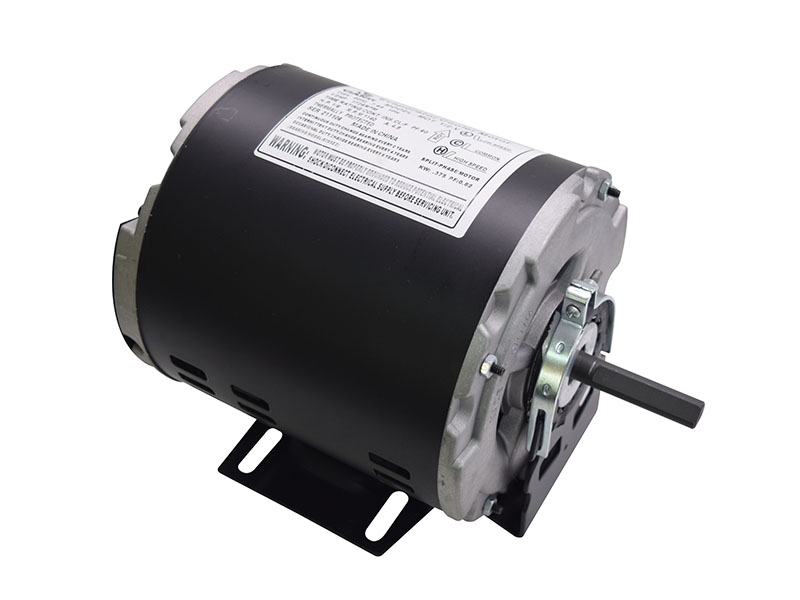

款式：Double speed evaporative cooler motor for desert cooler
型號：evaporative cooler motor for desert cooler
服務熱線：13961291308
♦定制說明：一切規格按照客戶實際情況或考察后量身定制，支持非標定制。
♦庫存配送：有貨，全國送貨保障！
♦溫馨提示：本產品一經下單生產，非質量問題不支持退貨！
產品描述
Information:
1) Single-Phase resistance start motor with steel housing.
2) Double speed asynchronous motor with centrifugal switch.
3) Good cooling performance, Designed for cooling system, water pumps etc.
4) High starting torque, smooth turning, low temperature rise, low vibration, low noise and great overload performance
5) Special motors can be designed according to customer's requirement
Specififcation:
| Model | Double Speed | Power | Voltage | Frequency | Current | Rotation | Degree Of Protection | Phase | |
| (RPM) | (HP) | (V) | (HZ) | (A) | |||||
| YDK160A-1/4 | HIGH | 1425/1725 | 1/4 | 220 | 50/60 | 2.9/2.5 | C.W. | IP23 | single-phase |
| SLOW | 950/1140 | 1.7/1.5 | |||||||
| YDK160A-1/3 | HIGH | 1425/1725 | 1/3 | 220 | 50/60 | 4.8/3.7 | C.W. | IP23 | single-phase |
| SLOW | 950/1140 | 2.7/2.4 | |||||||
| YDK160A-1/2 | HIGH | 1425/1725 | 1/2 | 220 | 50/60 | 5.4/4.4 | C.W. | IP23 | single-phase |
| SLOW | 950/1140 | 3.1/2.7 | |||||||
| YDK160A-3/4 | HIGH | 1425/1725 | 3/4 | 220 | 50/60 | 7.2/4.9 | C.W. | IP23 | single-phase |
| SLOW | 950/1140 | 3.9/3.2 | |||||||
Feature:
1) motor used in air cooler and water cooler in Iraq market.
2) Doublt speed motor with power 1/4HP,1/3HP and 1/2HP,3/4HP.
3) Other name:cooler motor,air condition motor,ac motor,ecm motor,fan motor,blow motor...
4) High quality winding with excellent insulation and heat transmission properties.
5)Good Protection against Humidity.?
6)Copper or copper mix according to customer requests.
